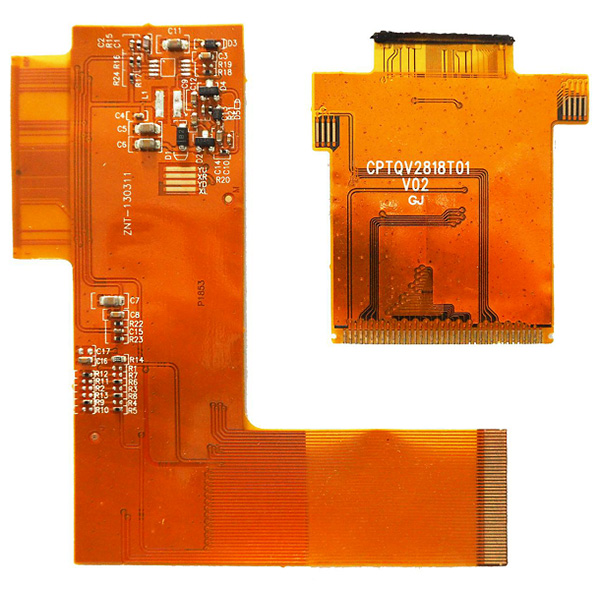

Umzimba omncane we-FPC ogoqekayo nge-FR4 stiffener

Incazelo emfushane:

Uhlobo lwento: i-polyimide

Isendlalelo: 2

Ububanzi besikhala / isikhala esincane: 4 mil

Min imbobo usayizi: 0.20mm

Iqedile ukujiya kwebhodi: 0.30mm

Iqedile ukujiya kwethusi: 35um

Qeda: ENIG

Umbala wesifiva sesolder: obomvu

Isikhathi sokuhola: izinsuku eziyi-10


Imininingwane yomkhiqizo

Amathegi womkhiqizo

FPC

Uhlobo lwento: i-polyimide

Isendlalelo: 2

Ububanzi besikhala / isikhala esincane: 4 mil

Min imbobo usayizi: 0.20mm

Iqedile ukujiya kwebhodi: 0.30mm

Iqedile ukujiya kwethusi: 35um

Qeda: ENIG

Umbala wesifiva sesolder: obomvu

Isikhathi sokuhola: izinsuku eziyi-10

1.Yini FPC?

I-FPC yisifinyezo sesifunda esiphrintiwe esiguquguqukayo. ukukhanya kwayo, ukujiya okuncane, ukugoba mahhala nokusongwa nezinye izici ezinhle kakhulu.

I-FPC yenziwa yi-United States ngesikhathi senqubo yokuthuthukiswa kobuchwepheshe be-rocket.

I-FPC iqukethe ifilimu le-polymer elincanyana lokuvikela umzimba elinamaphethini wesekhethi ahambisanayo ananyathiselwe kulo futhi ahlinzekwa ngopende oluncane lwe-polymer ukuvikela amasekethe womqhubi. Ubuchwepheshe busetshenziselwe ukuxhuma amadivayisi kagesi kusukela ngawo-1950 ngenye indlela. Manje sebungobunye bobuchwepheshe bokuxhumana obubaluleke kakhulu obusetshenziselwa ukwenziwa kwemikhiqizo eminingi yanamuhla esezingeni eliphezulu kakhulu ye-elekthronikhi.

Ubuhle be-FPC:

1. Ingagobeka, ilinywe futhi isongwe ngokukhululeka, ihlelwe ngokuya ngezidingo zokuhlelwa kwendawo, futhi ihanjiswe futhi inwetshwe ngokungenamkhawulo esikhaleni esinokubukeka okuthathu, ukuze kuzuzwe ukuhlanganiswa kwenhlangano yezingxenye nokuxhunywa kocingo;

2. Ukusetshenziswa kwe-FPC kunganciphisa kakhulu ivolumu nesisindo semikhiqizo ye-elekthronikhi, ukuzivumelanisa nokwakhiwa kwemikhiqizo ye-elekthronikhi ibheke ekuxinaneni okukhulu, i-miniaturization, ukuthembeka okuphezulu.

Ibhodi lesifunda le-FPC futhi linezinzuzo zokushabalalisa ukushisa okuhle nokuqina, ukufakwa okulula nezindleko eziphansi eziphelele. Ukuhlanganiswa kokuklanywa kwebhodi okuguquguqukayo futhi okuqinile nakho kwenza ukushoda okuncane kwe-substrate eguquguqukayo kumthamo wokuthwala wezinto ngezinga elithile.

I-FPC izoqhubeka nokusungula kusuka kuzici ezine ngokuzayo, ikakhulukazi ku:

1. Ubukhulu. I-FPC kufanele iguquguquke futhi ibe mncane ngokwengeziwe;

2. Ukusonga ukumelana. Ukugoba kuyisici semvelo se-FPC. Ngokuzayo, i-FPC kumele iguquguquke, izikhathi ezingaphezu kwezingu-10,000. Vele, lokhu kudinga i-substrate engcono.

3. Intengo. Njengamanje, intengo ye-FPC iphakeme kakhulu kunaleyo ye-PCB. Uma intengo ye-FPC yehla, imakethe izoba banzi kakhulu.

4. Izinga lobuchwepheshe. Ukuze uhlangabezane nezidingo ezahlukahlukene, inqubo ye-FPC kufanele ithuthukiswe futhi ukuvula okuncane kanye nobubanzi bomugqa / isikhala somugqa kufanele kuhlangabezane nezidingo eziphakeme.
